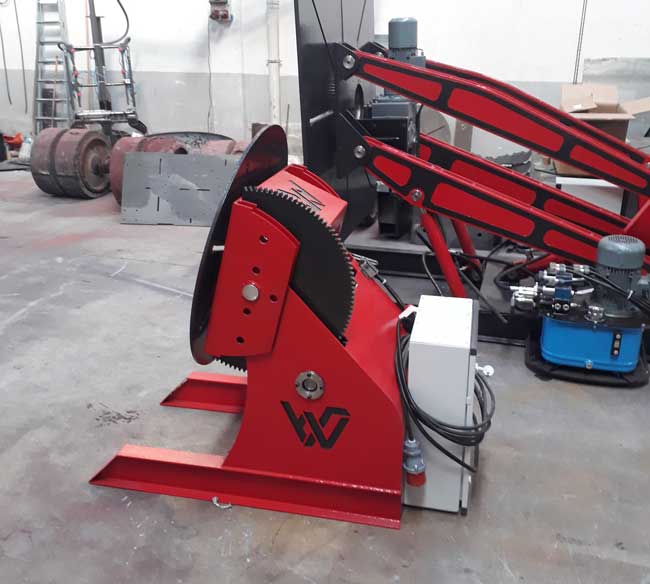

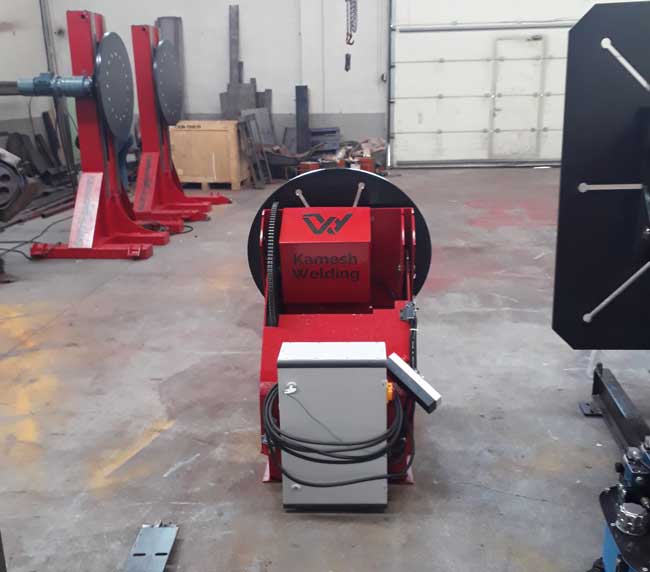

Welding Positioner
Our welding positioners are manufactured in two different types as hydraulic welding positioners and gear system welding positioners. By attaching the workpieces on the positioners, you can optimize them for the welding process so that you can weld easily, comfortably and with high quality.
What is a Welding Positioner?
Our welding positioners enable the welding operator to adjust the optimal angle and rotate the workpiece, making the welding operator easier and better quality. In addition, welding positioners can be fixed to the ground according to the material weight.
Table rotation speed of our welding positioners can be controlled by the control system. It is also possible to adjust our welding positioners to work synchronously with column boom systems. Our welding positioners are manufactured with robust body structure against heavy working conditions, there are channels on the table for easy assembly, precise speed control can be adjusted, inputs-outputs and voltage protection system can be connected to the automation system. Optionally there is a manual or digital remote control system.
Our welding positioners are used in all companies engaged in welding. It can be manufactured from 50 kilograms to 20 tons with standard capacity and 30 tons as optional. In companies using automatic welding system, welding machine can be adapted to the section on our machine. Our welding positioners are mainly used in arc welding, tig welding and submerged arc welding applications. Our standard welding positioners have 2 axes. We also manufacture 3 axis L type welding positioners.
Our Solutions & Benefits for Welding Positioner
- High Quality
- Delivery Right on Time
- Experience
- Ready Stock
Technical Details
| Technical Details | WWPOZ100 | WWPOZ250 | WWPOZ500 | WWPOZ1000 | WWPOZ3000 | WWPOZ5000 |
|---|---|---|---|---|---|---|
| Lated Load Capacity (KG) | 100 | 250 | 500 | 1000 | 3000 | 5000 |
| Rated Center Of Gravity (MM) | 150 | 150 | 150 | 150 | 150 | 150 |
| Rated Eccentrcity (MM) | 150 | 150 | 150 | 150 | 150 | 150 |
| Table Rotation Degree (º ) | 360 | 360 | 360 | 360 | 360 | 360 |
| Tilt Direction | Right -Left | Front | Front | Front | Front | Front |
| Rated Tilt Torgue (º ) | 120 | 120 | 120 | 120 | 120 | 120 |
| Input Power | 230 v -50 Hz | 230 v -50 Hz | 230 v -50 Hz | 230 v -50 Hz | 230 v -50 Hz | 230 v -50 Hz |
| Rotation motor (KW) | 0,25 | 0,37 | 0,37 | 0,55 | 1,1 | 1,5 |
| Tilt Motor (KW) | 0,18 | 0,18 | 0,25 | 0,55 | 0,75 | 1,1 |
| Table Diameter (MM) | 400 | 600 | 700 | 1150 | 1250 | 1350 |
| T Slots | M10 Hole x 12 | M12 Hole x12 | M12 Hole x12 | M16 T Slot x 4 | M16 T Slot x 4 | M16 T Slot x 4 |
| Dimension (MM) | 920x800x800 | 1000x650x600 | 1150x750x700 | 1850x1150x1150 | 2000x1250x1250 | 2200x1350x1350 |
| Weight (KG) | 240 | 290 | 350 | 1450 | 1850 | 2500 |
| Color | Red -Grey | Red -Grey | Red -Grey | Red -Grey | Red -Grey | Red -Grey |
Get a Quote
Please send us your inquiry with the form below.
Need more help?
Please call us today to get more informations about our machines.
Customer Services
+90 332 248 33 00
WELKON WELDING
WHY CHOOSE OUR Welding Positioner
Please take a look below the reasons why you should choose us and our welding positioner.
Quality
Analyze
Target Oriented
Advantages of Using Welding Positioner
There are several advantages offered by using a welding positioner. It ensures that welding is done safely and quickly. It can be controlled manually or by remote control. It is used for welding materials weighing from 50 kilos to 20 tons. If needed, its capacity can be increased up to 30 tons. Welding can be done automatically by mounting a welding machine on the machine.
The material on it can be rotated 360 degrees. In this way, welding can be done easily from any angle.
It is remote controlled and provides occupational safety.
Table rotation speed can be controlled.
It can be used in the welding of all materials.
Increasing work efficiency can be achieved by adapting to welding automation.
Welding positioner is produced with two axes. It is produced in three-axis positioners.
Welding Positioner Manufacturer
The products of our welding positioner manufacturer company make it possible to make welding easy and high quality in every sector. The capacity of the product is between 50 kilos and 20 tons as standard. In addition, if you need, we also produce with a capacity of 30 tons. With precise speed control and remote control, security is at the highest level.
Our company meets your need for a welding positioner in your factory or workshop with its superior quality products. In addition to these 2-axis positioners, 3-axis positioners are among the products of our company. You can find out detailed information about the technical features and price of the products by contacting our company. Optional features you want can be added to the product.
Welding Positioner (Geared+Hydraulic)
Welding positioner is produced as geared or hydraulic. With this product, it is connected to the material to be welded and it is possible to do it without any problems. After the product is attached to the positioner, the most suitable position is adjusted and it is possible to make quality welding. Depending on the weight of the material to be welded, it is possible to fix the positioner to the ground. The operator can find the right angle by rotating the material.
With its robust body, this product ensures that it can be used without any problems even under heavy working conditions. It is possible to adjust the table rotation speed of the remote controlled positioner. The product can be used in all factories and workshops where welding is done. In factories with automatic welding system, the product can be adapted to automation. It is used in gas metal arc, submerged arc and tig welding applications.
Welkon Welding
Most Popular Questions for Welding Positioner
Please check our most popular questions for our welding positioner machines that we manufacture, to find answer easily. If you have any further questions, please inform us to get fast and correct answer.
Yes. Welkon manufactures the welding positioner at any quantity you want.
Yes. Welkon exports the welding positioner to any country. You can contact us and inform which models you need and which country you are from.
Yes, you can always come to see and check our welding positioner.
